Capacitive Sensors CA12, CA18, CA30/EC 30, CB, EC55, VC Series

• Featuring TRIPLESHIELD™ sensor protection• Rated operational voltage: 20-250 VAC• Adjustable sensing distance 3-8 mm or 3-12 mm• Output: SCR• Make or break switching function• LED indication• High noise immunity• Flush and non-flush types• Plug and cable versions • DC versions in the same housing

Description

Description

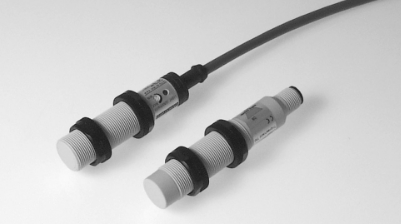

Capacitive proximity switc h es with either sensing distance 8 mm flush mounted in metal or sensing distance 12 mm non-flush mounted. 2-wire AC output with ma ke (NO) or bre-ak (NC) switch ing. Grey M18 polyester housing with 2 m PVC cable or M12 plug. Ideal for use in level and plas tic ma chin ery applica tions
